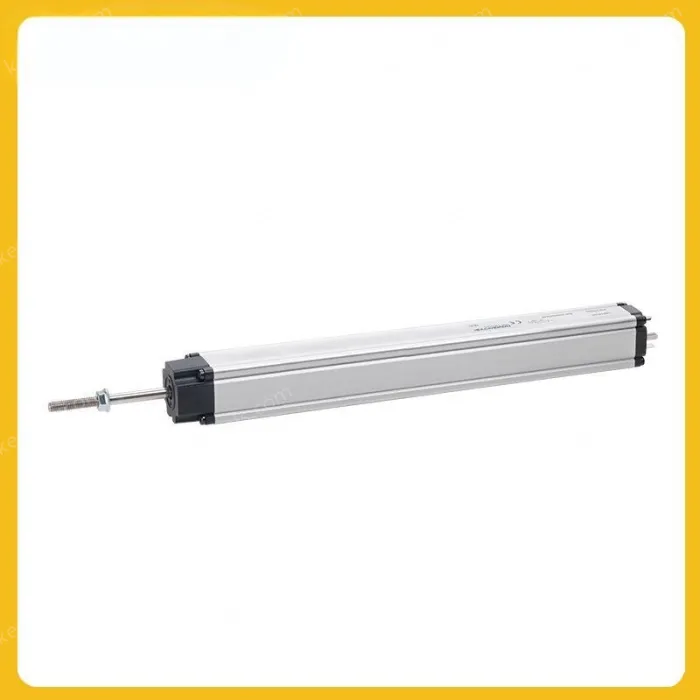

Electrical parameters

Working range: 900mm

Electrical stroke: 914mm

Standard resistance: 10K Ω

Resistance tolerance: 20 ±%

Independent linearity: 0.04 ±%

Repeatability: 0.01mm

Sliding brush working current: ≤ 1μA

Maximum current of sliding brush during malfunction: 10mA

Maximum allowable operating voltage: 42V

Effective temperature coefficient ratio of output voltage to input voltage: 5ppm/K

Insulation impedance: ≥ 10MΩ

Insulation strength: ≤ 100μA

mechanical parameters

Shell length: 984 ± 2mm

Mechanical stroke: 923 ± 2mm

Total weight: 1230g

Sliding brush and pull rod weight: 245g

Work stress

Horizontal direction:< 10 N

Vertical direction: ≤ 10 N

Environmental effectiveness

Temperature range:- 30~+100℃

Anti vibration standard: 6-2000HZ

Impact standard: 60g

Lifespan: 10000 cycles

Maximum operating speed: 10m/t

Maximum operating acceleration: 200m/t ²

Protective zither level: IP56
